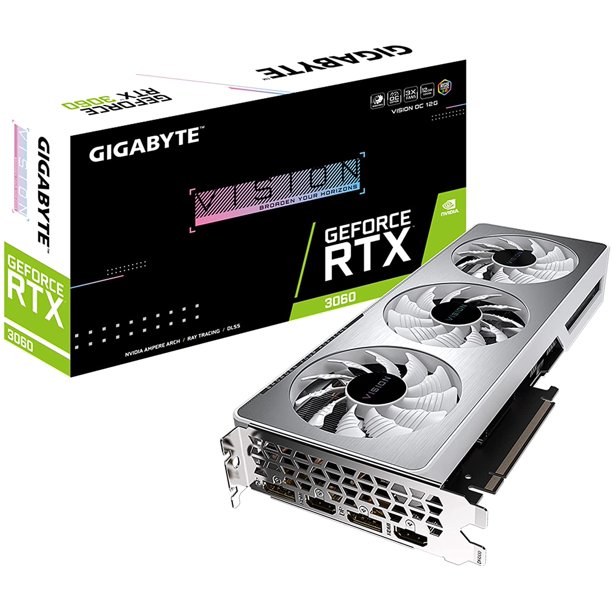

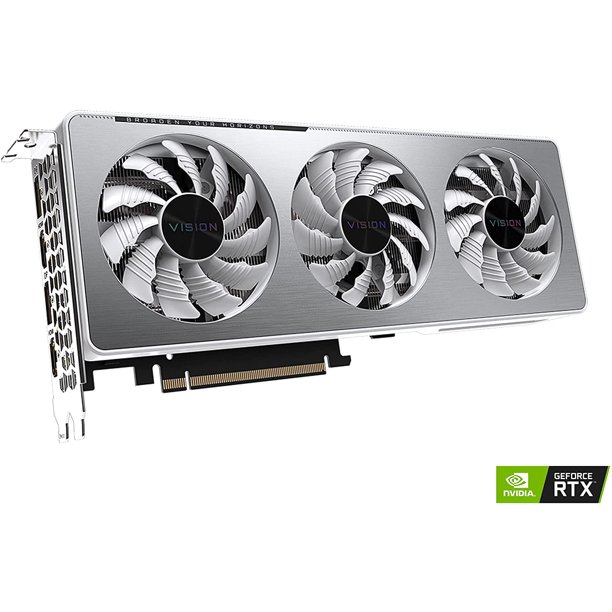

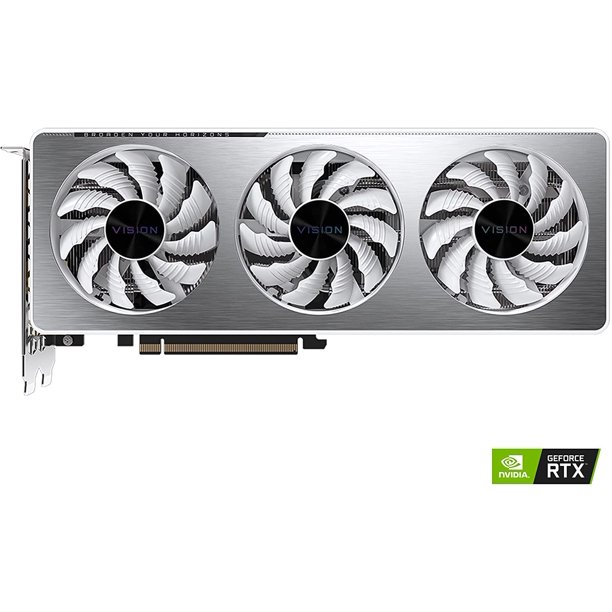

Gigabyte NVIDIA GeForce RTX 3060 12GB VISION OC Rev 2.0 Ampere Graphics Card

Gigabyte NVIDIA GeForce RTX 3060

CREATE YOUR WORK FASTER THAN EVER

Powerful GeForce RTX 30 VISION series accelerates your work with incredible boosts in performance. Whether you are doing VIDEO EDITING?3D ANIMATION?PHOTOGRAPHY?GRAPHIC DESIGN?ARCHITECTURAL VISUALIZATION or BROADCASTING, it can save you a lot of time.

WINDFORCE 3X COOLING SYSTEM

The WINDFORCE 3X cooling system features 3X80mm unique blade fans, alternate spinning, 3 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING

Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.

SCREEN COOLING

Extended heatsink design allows air flow to pass through, providing better heat dissipation.

HEAT PIPES DIRECT TOUCH

The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling. Graphics Processing
GeForce RTX ^TM 3060 Core Clock
1837 MHz (Reference Card: 1777 MHz) CUDA Cores
3584 Memory Clock
15000 MHz Memory Size
12 GB Memory Type
GDDR6 Memory Bus
192 bit Memory Bandwidth (GB/sec)
360 GB/s Card Bus
PCI-E 4.0 x 16 Digital max resolution
7680×4320 Multi-view
4 PCB Form
ATX DirectX
12 Ultimate OpenGL
4.6 Recommended PSU
550W Power Connectors
8 Pin x1 Output
DisplayPort 1.4a x2
HDMI 2.1 x2 SLI Support
N/A Accessories
Quick Guide Item Dimension (L inchxW inchxH inch)
12 x 5 x 2

Weight
3.00 lb
