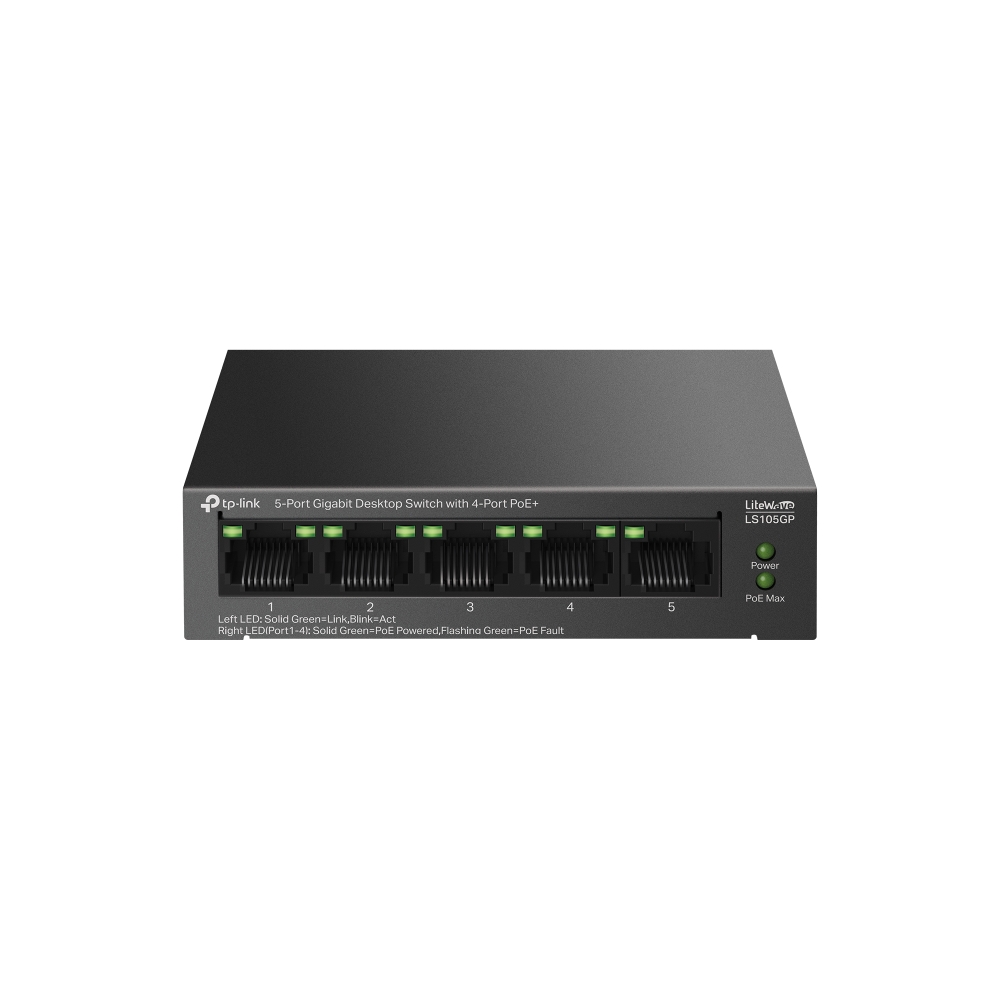

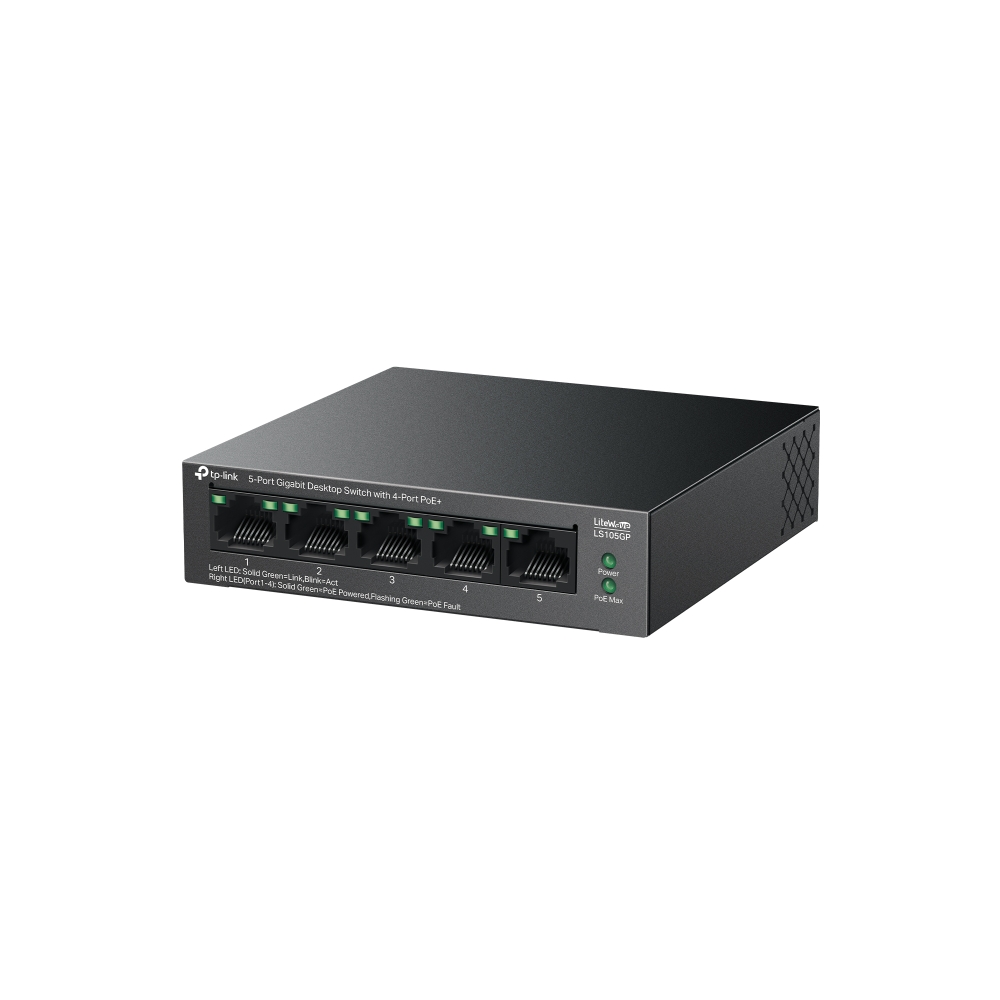

TP-Link LS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+

TP-Link LS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+

The TP-Link LS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+ is a powerful and convenient networking solution designed for small offices, CCTV installations, Wi-Fi access points, and smart business networks.

It combines Gigabit speed with PoE+ power delivery, allowing you to connect and power devices like IP cameras and access points using a single Ethernet cable.

Brief Product Description

The TP-Link LS105GP LiteWave is an unmanaged 5-port Gigabit switch featuring 4 PoE+ ports for powering network devices without needing separate power adapters.

It is ideal for expanding wired networks while simplifying installations for security cameras and wireless access points.

Key Features & Benefits (Technical)

• 5 Gigabit Ethernet Ports (10/100/1000Mbps)
  Benefit: Provides high-speed wired connections for smooth networking and fast data transfers.

• 4 PoE+ Ports (Power over Ethernet Plus)
  Benefit: Powers IP cameras, access points, and VoIP phones directly through Ethernet cables.

• PoE Power Budget Support
  Benefit: Ensures stable power delivery for multiple connected PoE devices.

• Plug and Play Installation
  Benefit: No configuration required, easy setup for homes and businesses.

• Fanless Silent Operation
  Benefit: Runs quietly, perfect for offices, shops, and indoor environments.

Technical Specifications

Network Ports

• Total Ports: 5 RJ45 Gigabit Ports

• Speed: 10/100/1000Mbps Auto-Negotiation

• PoE Ports: 4 Ports (PoE+)

• Uplink Port: 1 Gigabit Non-PoE Port

• Auto MDI/MDIX: Yes

PoE Features

• PoE Standard: 802.3af / 802.3at (PoE+)

• PoE Power Output per Port: Up to 30W

• Total PoE Power Budget: Up to 65W (model dependent)

• PoE Auto Detection: Yes

Performance

• Switching Capacity: 10Gbps

• Packet Forwarding Rate: 7.4 Mpps

• MAC Address Table: 2K Entries

• Jumbo Frame Support: Yes

Features

• Unmanaged Switch: Yes

• Plug and Play: Yes

• IEEE Standards: 802.3i / 802.3u / 802.3ab / 802.3x

Design & Build

• Form Factor: Desktop

• Housing: Compact Durable Case

• Fanless: Yes (Silent Operation)

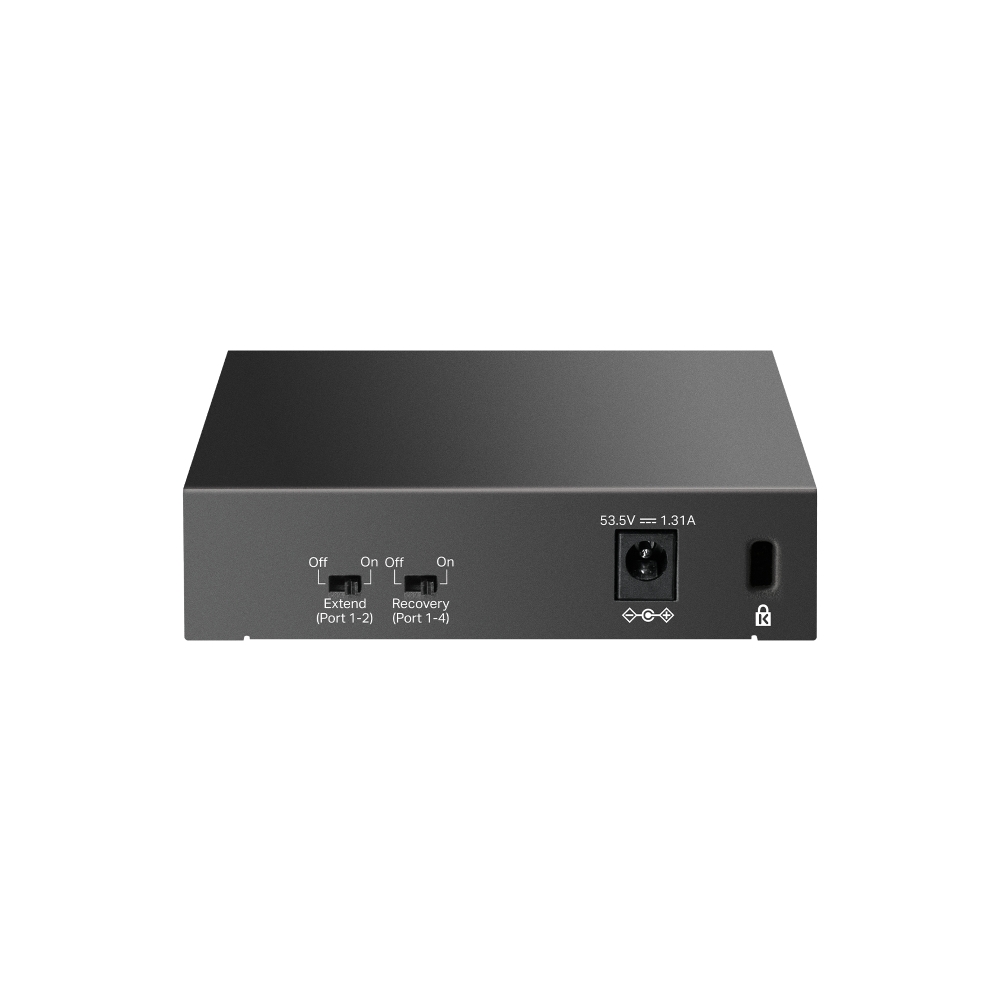

Power

• External Power Adapter: Included

• Energy Efficient Mode: Supported

Pros and Cons

Pros

• Gigabit speeds for fast networking

• PoE+ support simplifies CCTV and AP installations

• Powers up to 4 devices without extra adapters

• Easy plug-and-play operation

• Silent fanless design

• Ideal for small office and security setups

Cons

• Limited to 5 ports for small networks only

• Unmanaged (no VLAN or advanced controls)

• Total PoE power budget may limit high-power devices

Specification Summary

The TP-Link LS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+ offers:

• 5 Gigabit Ethernet ports

• 4 PoE+ ports for powering devices

• Up to 65W PoE power budget

• 10Gbps switching capacity

• Silent fanless plug-and-play design

Perfect for CCTV systems, Wi-Fi access points, and small business networks.
