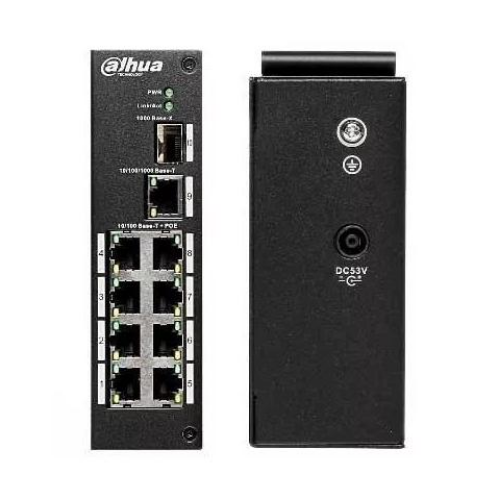

Dahua DH-PFS3110-8P-96 8-Port PoE Switch

Dahua DH-PFS3110-8P-96 PoE Switch Overview

The Dahua DH-PFS3110-8P-96 PoE Switch is a compact and reliable network switch designed for IP surveillance systems, small business networks, and PoE device installations. It features 8 PoE Ethernet ports that deliver both power and data through a single network cable, simplifying installation of IP cameras, wireless access points, and VoIP devices.

With a 96W PoE power budget, CCTV transmission optimization, and durable design, this switch provides a cost-effective solution for reliable video surveillance deployments.

---

Key Features & Benefits

• 8-Port PoE Network Switch
  • Benefit: Connects multiple PoE devices such as IP cameras and access points while reducing cable installation requirements.
• 96W High PoE Power Budget
  • Benefit: Provides sufficient power for multiple IP cameras and other PoE-enabled devices.
• Long-Distance PoE Transmission Mode
  • Benefit: Supports extended cable distances, allowing flexible camera placement in larger areas.
• CCTV Surveillance Optimization
  • Benefit: Prioritizes video traffic to provide stable and smooth surveillance streaming.
• Plug-and-Play Installation
  • Benefit: Allows quick deployment without complex network configuration.

---

Technical Specifications

General

• Brand: Dahua Technology
• Model: DH-PFS3110-8P-96
• Product Type: Unmanaged PoE Switch
• Application: IP Surveillance Networking

---

Ports & Connectivity

• PoE Ports: 8 × RJ45 10/100 Mbps PoE Ports
• Uplink Ports: 2 × RJ45 Ethernet Ports
• Port Type: Fast Ethernet
• Transmission Medium: Cat5e/Cat6 Ethernet Cable

---

PoE Specifications

• PoE Standard: IEEE 802.3af / IEEE 802.3at
• PoE Budget: 96W
• Power Output: Up to 30W per PoE port (depending on power availability)
• PoE Management: Intelligent power allocation

---

Network Performance

• Switch Capacity: High-performance switching architecture
• Forwarding Rate: Efficient packet transmission
• MAC Address Learning: Automatic
• Flow Control: Supported

---

Surveillance Features

• CCTV mode support
• Long-distance transmission
• Stable video data transfer
• Suitable for IP camera networks

---

Physical Specifications

• Installation: Desktop/wall mount
• Housing: Metal chassis
• Cooling: Fanless design
• Power Supply: External power adapter/internal power supply (configuration dependent)

---

Pros

• Supports up to 8 PoE devices
• 96W power budget for CCTV applications
• Easy installation with plug-and-play operation
• Reliable Dahua networking performance
• Compact and space-saving design
• Suitable for IP camera installations
• Reduces need for separate power cables

---

Cons

• Limited to Fast Ethernet speeds (10/100Mbps)
• Not designed for large enterprise networks
• No advanced management features
• Limited PoE capacity compared to higher-end switches

---

Ideal Applications

• Small CCTV systems
• Homes
• Shops
• Offices
• Small warehouses
• Access point installations
• IP phone networks
