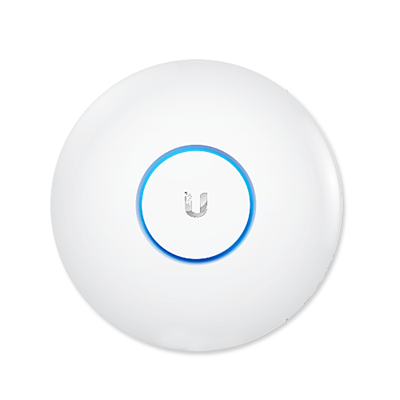

Ubiquiti Unifi AC Pro AP


Ubiquiti Unifi AC Pro AP Features:

    • 2.4/5 GHz WiFi 5 bands (3×3 MIMO)
    • 1.3 Gbps aggregate throughput rate
    • Balanced antenna pattern for enhanced mounting versatility

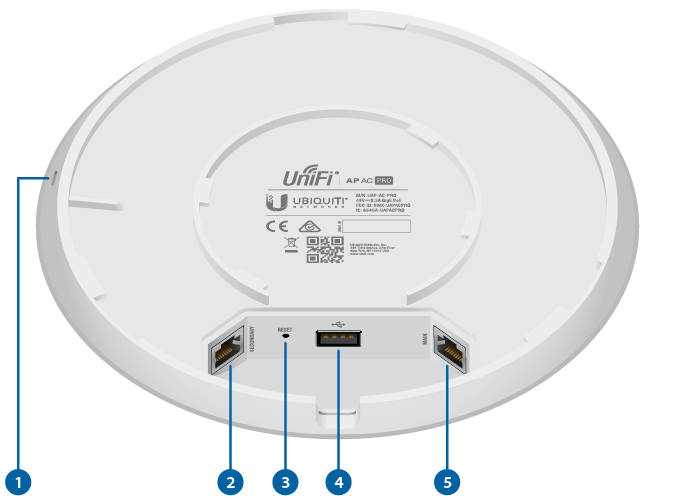

    • (1) GbE RJ45 port (PoE In)*
    • (1) GbE RJ45 port for extended devices

KSh22,000 KSh24,500

Ubiquiti Unifi AC Pro AP

Dual-band WiFi 5 access point designed to support high-density networks and critical system applications.

Features:

    • 2.4/5 GHz WiFi 5 bands (3×3 MIMO)
    • 1.3 Gbps aggregate throughput rate
    • Balanced antenna pattern for enhanced mounting versatility
    • (1) GbE RJ45 port (PoE In)*
    • (1) GbE RJ45 port for extended devices
Mechanical
Dimensions 196.7 x 196.7 x 35 mm (7.74 x 7.74 x 1.38″)
Weight Without Mounting Kit: 350 g (12.4 oz),
With Mounting Kit: 450 g (15.9 oz)
Hardware
Networking Interface (2) 10/100/1000 Ethernet Ports
Ports (2) 10/100/1000 Ethernet
(1) USB 2.0
Button Reset
Antennas
2 GHz
5 GHz
(3) Dual-Band Antennas
3 dBi
3 dBi
Max. TX Power 22 dBm
Power Method Passive PoE (48V), PoE+ Supported
Power Supply 48V, 0.5A PoE Gigabit Adapter (Included)*
*5-packs do not come with PoE injectors.
Supported Voltage Range 44 to 57VDC
Maximum Power Consumption 9W
Mounting Wall/Ceiling (Kits Included)
Operating Temperature -10 to 70° C (14 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
Software
WiFi Standards 802.11 a/b/g/n/ac
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID Up to Four per Radio
VLAN 802.1Q
Advanced QoS Per-User Rate Limiting
Guest Traffic Isolation Supported
Power Save Supported
WMM Voice, Video, Best Effort, and Background
Concurrent Clients 125+
Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40)
802.11ac 6.5 Mbps to 1300 Mbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80)
  • Adopt the UAP-AC-PRO in Minutes with Your UniFi Network Application and:
  • Centrally manage multiple networks from an intuitive interface
  • Enjoy real-time device insights and deep configuration options
  • Upgrade device firmware remotely
  • Manage network users and guests with ease
  • Personalize the design, architecture, and privacy of guest hotspots
  • Set up devices quickly and manage them on the go with a powerful mobile app

How do I manage my Unifi Access Points (UAP)?

UAPs can be locally or remotely managed with your UniFi Network application running on a UniFi OS Console. UAPs can also be set up as independent devices, but doing so will limit your configuration and remote access options.

Access your UAPs on UniFi Network by going to unifi.ui.com or downloading the mobile app (Android / iOS).

How many WiFi networks (SSIDs) can I have per access point?

Non-meshing UAPs can broadcast up to eight SSIDs. Meshing UAPs, which connect to other APs and not directly to your network, can broadcast up to four.

Can I wirelessly mesh my APs together?

Yes, UAPs can be wirelessly meshed together as long as at least one AP is directly connected to your network.

Note: We recommend connecting no more than 2 meshing UAPs to a wired one to ensure optimal performance.

UAP-AC-PRO
Deploy the UniFi AC Pro AP indoors or outdoors, in
wireless networks requiring maximum performance.
Sporting a weatherproof design, the UniFi AC Pro AP
features simultaneous, dual-band, 3×3 MIMO technology
and convenient 802.3af PoE/802.3at PoE+ compatibility.
It is available in single- and five‑packs1.

UAP-AC-PRO Specifications
Dimensions 196.7 x 196.7 x 35 mm (7.74 x 7.74 x 1.38″)
Weight
With Mounting Kits
350 g (12.4 oz)
450 g (15.9 oz)
Networking Interface (2) 10/100/1000 Ethernet Ports
Port (1) USB 2.0 Port
Buttons Reset
Power Method Passive Power over Ethernet (48V), 802.3af/802.3at Supported
(Supported Voltage Range: 44 to 57VDC)
Power Supply UniFi Switch (PoE)
Power Save Supported
Maximum Power Consumption 9W
Maximum TX Power
2.4 GHz
5 GHz
22 dBm
22 dBm
Antennas (3) Dual-Band Antennas, 2.4 GHz: 3 dBi, 5 GHz: 3 dBi
Wi-Fi Standards 802.11 a/b/g/n/r/k/v/ac
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID Up to 8 per Radio
Mounting Wall/Ceiling (Kits Included)
Operating Temperature -10 to 70° C (14 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
Advanced Traffic Management
VLAN 802.1Q
Advanced QoS Per-User Rate Limiting
Guest Traffic Isolation Supported
WMM Voice, Video, Best Effort, and Background
Concurrent Clients 125+
Supported Data Rates (Mbps)
802.11ac 6.5 Mbps to 1300 Mbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80)
802.11n 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
