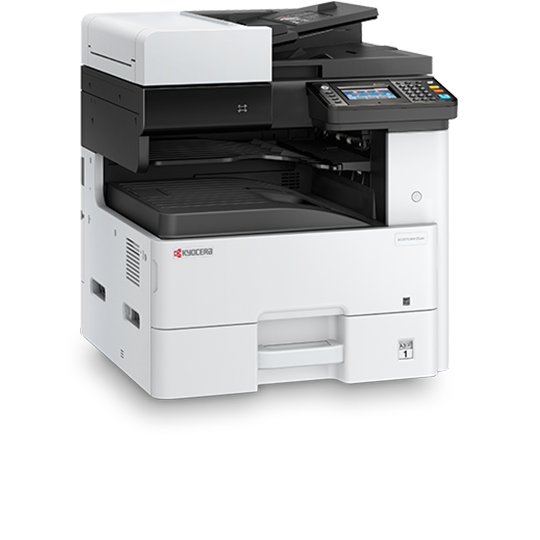

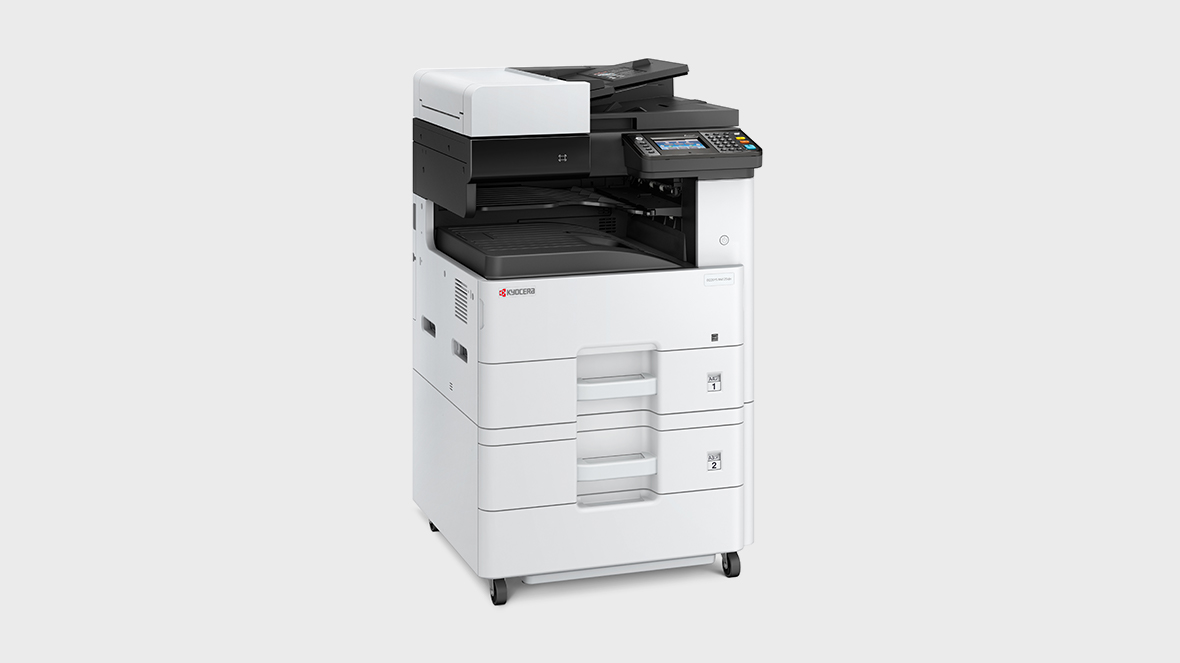

Kyocera ECOSYS M4125idn

Kyocera Machines

ECOSYS makes your office more sustainable and efficient

Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

Multi-Functional Products for day-to-day tasks

Kyocera provides the industry’s most comprehensive line of award-winning low to high volume devices.

ECOSYS: The sustainable solution

Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.

A3 and A4 printers for all needs

High quality, high reliability and high efficiency are essential.

Warranty

1-year warranty as standard (depending on the country). KYOCERA guarantees the drum and developer for 3 years or 300,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions.

• Paper handling

Input capacity

100-sheet multi-purpose tray, 45–256 g/m²: A3, A4, A5, A6, B5, Ledger, Letter, Legal, Folio, Custom (98 x 148 to 297 x 432 mm); 500-sheet standard universal paper cassette, 60–163 g/m²: A3, A4, A5,´B5, Ledger, Letter, Legal, Folio

Max. input capacity with options

1,600 sheets

Duplex unit

Duplex as standard supports 60–163 g/m²

Max. output capacity

Max. 300 sheets: 250 sheets face-down (main tray), plus 50 sheets (standard job separator tray)

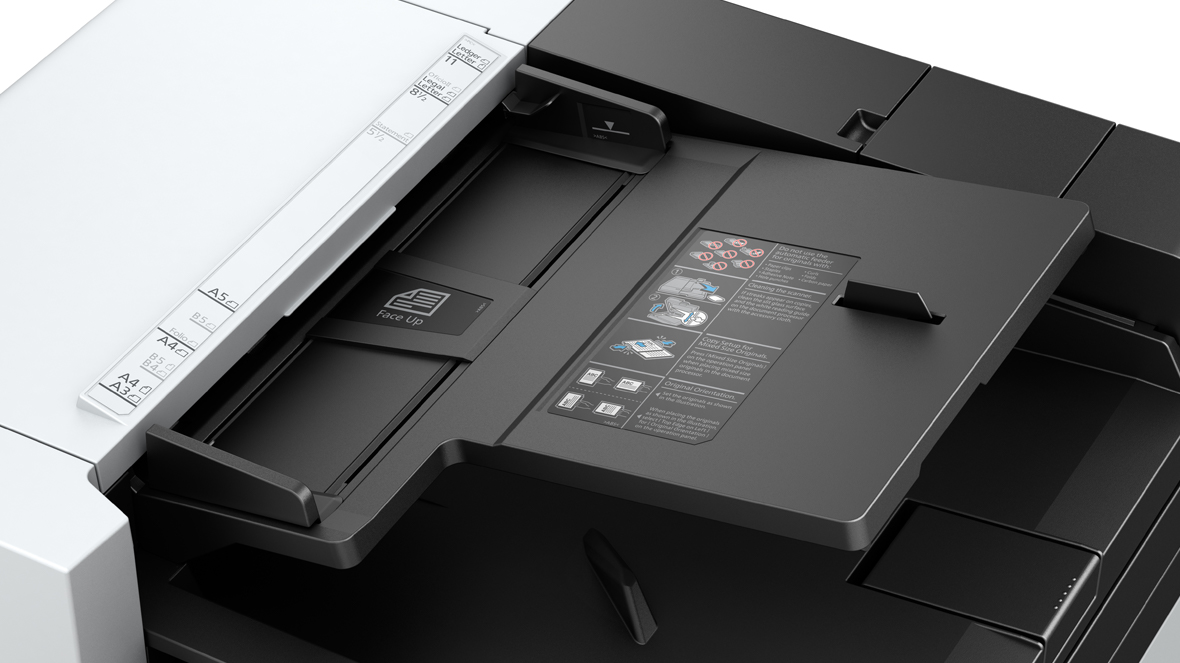

Document processor

Standard reversing document processor: 50-sheet, Simplex scan 45–160 g/m², Duplex scan 50–120 g/m², A3, A4, A5, B5, Letter, Legal, Custom (140×182 to 297x432mm)

• Print

Processor

ARM Cortex-A9 Dual core1.2 GHz

Fonts

101 outline fonts (PCL 6, KPDL 3, Windows Vista), 1 Bitmap font, 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode PDF-417 under PRESCRIBE (PCL – and other barcodes available as options)

Features

Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, Private Print quick copy, proof and hold, job storage and job management functionality

Applicable OS

All current Windows operating systems, MAC OS X Version 10.5 or higher, Unix, Linux as well as other operating systems on request

• Copy

Max. original size

A3/Ledger

Continuous copy

1 – 999

Zoom range

25 – 400 % in 1% steps

Preset magnification ratios

5 Reductions/5 Enlargements

Image adjustments

Text, Photo, Text + Photo, Graphic/Map, Copy/Printout

Digital copy features

Scan-once-copy-many, electronic sort, 2in1, 4in1, job reserve, priority print, program, auto duplex copy, split copy, continuous scan, auto cassette change (PF-470 or PF-471 is required), copy density control, Prevent Bleed-Through, ID card copy, Skip Blank Page

• Scan

Scan functionalities

Scan-to-email, Scan-to-FTP, Scan-to-SMB, Scan to USB Host, Network TWAIN, WIA, WSD scan

Scan speed

50 ipm (300 dpi, A4, b/w), 50 ipm (300 dpi, A4, colour)

Scan features

Colour Scan integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip

Scan resolution

200 dpi, 300 dpi, 400 dpi, 600 dpi (256 greyscales per colour)

Max. scan size

A3/Ledger

File type

PDF, PDF/A, JPG, Encrypted PDF, High Compression PDF, TIFF, Open XPS, PDF/A-1a/b, PDF/A-2a/b/u

Original recognition

Text, photo, text + photo, light text, optimized for OCR

• Fax

Compatibility

ITU-T Super G3

Modem speed

Max. 33.6 kbps

Scanning speed

2.0 seconds or less

Transmission speed

Max. 33.6 kbps

Scanning density

Normal: 8 dot/mm x 3.85 line/mm (200×100 dpi), Fine: 8 dot/mm x 7.7 line/mm (200×200 dpi), Superfine: 8 dot/mm x 15.4 line/mm (200x400dpi), Ultrafine: 16 dot/mm x 15.4 line/mm (400×400 dpi), Halftone: 256 gray scales

Max. original size

A3/Ledger

Fax features

Network fax, duplex transmission and reception, encrypted transmission and reception, polling transmission and reception, broadcast
