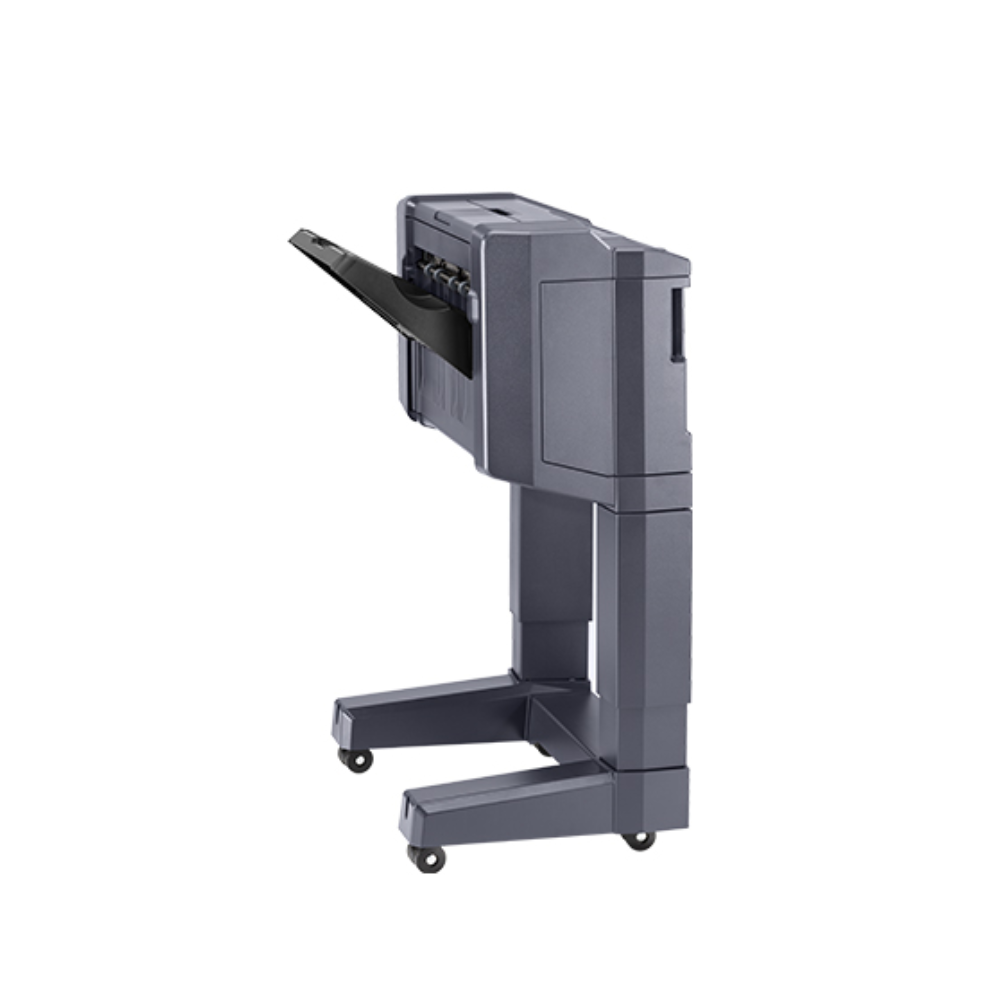

The Kyocera DF-7120 is a floor-standing document finisher that staples, sorts and stacks output from Kyocera TASKalfa A3 copiers. It holds up to 1,000 A4 sheets and staples sets of up to 50 pages automatically. Offices, schools and print rooms use it to produce ready-to-distribute documents without manual stapling.
Key Features & Benefits
- 1,000-sheet output tray: Large print runs stack neatly without overflowing the copier’s internal tray. As a result, unattended jobs can run while staff do other work.
- Automatic stapling up to 50 sheets A4: Reports, exam papers and handouts come out stapled in one corner or along the edge. Therefore, nobody spends an afternoon stapling by hand.
- Three staple positions: Choose front corner, rear corner or two staples along the edge. This suits both single-page packets and booklet-style reports.
- Paper from A6R to SRA3, 52–300 g/m²: The finisher accepts the same media range as the copier, including heavy cover stock. For instance, reports can include a card cover and still staple cleanly.
- Optional hole punching: Adding the PH-7C punch unit produces 2-hole or 4-hole documents ready for ring binders and files. Additionally, offset stacking separates each set for easy collection.
Technical Specifications
Output & Stapling
- Stack capacity: 1,000 sheets A4 (80 g/m²)
- Paper sizes: A6R to SRA3 (320 x 450 mm)
- Paper weight: 52 – 300 g/m²
- Stapling capacity: Up to 50 sheets A4 or 30 sheets A3
- Staple positions: 3 (front corner, rear corner, 2-point edge)
- Staple cartridge: SH-10 (3 x 5,000 staples)
Physical
- Type: Floor-standing external finisher
- Dimensions (W x D x H): Approximately 548 x 619 x 1,050 mm
- Power: Supplied from the main copier
Required Bridge Unit
- TASKalfa MZ series: AK-7110 attachment kit (required, sold separately)
- TASKalfa 2552ci–6053ci series and ECOSYS P8060cdn: AK-7100 attachment kit (required)
Optional Add-Ons
- PH-7C punch unit: 2-hole, 4-hole or Swedish type, A5R – A3, 52 – 300 g/m²
Compatibility
- TASKalfa MZ series (current): MZ2501ci, MZ3501ci, MZ4001ci
- TASKalfa colour (previous): 2552ci, 2553ci, 3252ci, 3253ci, 4052ci, 4053ci, 5052ci, 5053ci, 6052ci, 6053ci
- TASKalfa mono (previous): 3011i, 3511i, 4002i, 5002i, 5003i, 6002i, 6003i
- ECOSYS: P8060cdn
Part Number
- International/EU: 1203RV3NL0
Use Cases & Applications
Offices and Corporate Departments
Admin and finance teams print board packs, policy documents and monthly reports in stapled sets. Additionally, offset stacking keeps each copy separate for distribution.
Schools, Colleges and Universities
Exam offices print and staple exam papers for whole classes in one run. Hole punching prepares course packs for student binders.
Campus Print Rooms and Cyber Cafés
Student assignments, project reports and lecture handouts come out stapled and ready to submit. As a result, print shops serve more customers at peak times.
Legal, Accounting and Government Offices
Contracts, audit files and tender documents are collated, stapled and punched for filing. Meanwhile, staff avoid errors from manual sorting.
Will It Work With Your Setup?
Which copiers does the Kyocera DF-7120 fit?
It fits the TASKalfa MZ2501ci, MZ3501ci and MZ4001ci. It also fits the previous 2552ci–6053ci and 3011i–6003i series and the ECOSYS P8060cdn.
Do I need anything else to install it?
Yes. You need a bridge unit: the AK-7110 for TASKalfa MZ models, or the AK-7100 for older models.
Can it make booklets?
No. For saddle-stitched booklets, choose the DF-7140 or DF-7150 with a booklet folding unit.
How many sheets can it staple?
It staples up to 50 sheets of A4 or 30 sheets of A3 per set.
Can it punch holes?
Yes, with the optional PH-7C punch unit.
What is the difference between the DF-7100 and DF-7120?
The DF-7100 is a 500-sheet inner finisher that fits inside the copier. The DF-7120 is an external finisher with double the capacity.
Does it need its own power socket?
No. It draws power from the copier.
Is installation difficult?
It should be installed by a qualified Kyocera technician. The finisher must be aligned and connected to the copier through the bridge unit.
Important Notes (Merchant Verification Before Publishing)
- Bridge unit: Confirm whether the AK-7110 or AK-7100 is bundled. It is required and usually sold separately.
- Compatibility: Kyocera’s MZ datasheets confirm the MZ2501ci, MZ3501ci and MZ4001ci. Confirm support for other MZ models before listing them.
- Dimensions and weight: Dimensions come from a reseller listing, and no official weight was found. Confirm from packaging or the Kyocera service manual.
- Staple cartridges: Confirm whether SH-10 staples ship with the unit.
- Installation: Confirm whether technician installation is included in the price.
- Condition: Confirm the unit is new, not refurbished or ex-lease.
