Description

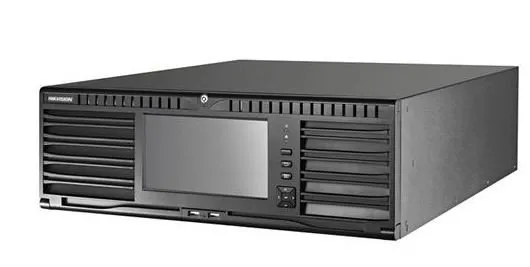

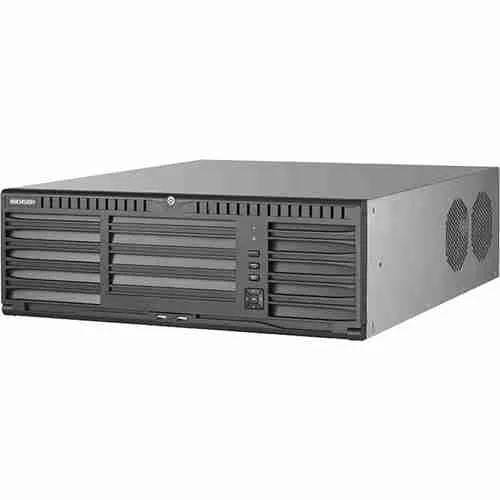

Hikvision NVR DS-96256NI-I16 256 Channels Up to 12MP

More HikVisiona

Hikvision NVR DS-96256NI-I16 256 Channels Up to 12MP Professional and Reliable

  • Pluggable HDD design provides a convenient HDD installation and maintenance way; Unique chassis based on patented design ensures environmentally friendly and low-noise running.
  • Adopt professional embedded hardware and software, and pioneering dual-OS design to ensure the reliability of the system running. Support redundant power supply to improve the system stability.
  • Adopts ANR technology to enhance the storage reliability when the network is disconnected.
  • Supports HDD hot swap with RAID0, RAID1, RAID5, RAID 6, and RAID10 storage scheme configurable.
  • Either normal or hot spare working mode is configurable to constitute an N 1 hot spare system.

Hikvision NVR DS-96256NI-I16 256 Channels Up to 12MP HD Input

  • Connectable to the third-party network cameras like ACTI, Arecont, AXIS, Bosch, Brickcom, Canon, ONVIF, PANASONIC, Pelco, PSIA, SAMSUNG, SANYO, SONY, Vivotek, and ZAVIO.
  • Up to 128/256 IP cameras can be connected.
  • Support live view, storage, and playback of the connected camera at up to 12 megapixels resolution.

Hikvision NVR DS-96256NI-I16 256 Channels Up to 12MP HD Output

  • Simultaneous HDMI 1/VGA output as the main output and the HDMI 2 works as the auxiliary output.
  • Video outputs at up to 4K (4096×2160) resolution.
  • Supports decoding up to 20 channels at 1080p resolution.

Hikvision NVR DS-96256NI-I16 256 Channels Up to 12MP HD Storage

  • Up to 16 SATA, hard disks can be connected, for both recording and backup.

HD Transmission

  • 4 self-adaptive 10M/100M/1000M network interfaces.

Various Applications

  • Centralized management of IP cameras is supported, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.
  • Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized.
  • VCA detection alarm is supported.
  • VCA searches for face detection, behavior analysis, people counting, and heat map.
  • It supports starting records with one key.
  • Realize instant playback for assigned channels during multi-channel display mode.
  • Smart search for the selected area in the video; and smart playback to improve the playback efficiency.
  • Supports HDD quota and group modes; different capacities can be assigned to different channels.
VIDEO/AUDIO INPUT
IP video input: 256-ch
Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1kΩ)
NETWORK
Outgoing bandwidth: 768Mbps
Incoming bandwidth: 768Mbps
Remote connection: 256

Hikvision

VIDEO/AUDIO OUTPUT
HDMI Output: 2-ch, resolution: 4K(4096*2160)/60Hz, 4K(3840*2160)/30Hz, 2K(2560*1440)/60HZ, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Recording Resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output: 1-ch, RCA (2.0Vp-p, 1KΩ)
VGA Output: 1-ch, resolution: 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
DECODING
Live view / Playback: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability: 20-ch@1080P
HARD DISK
eSATA: 1 eSATA interface
miniSAS (Optional): 2 miniSAS interface
Capacity: Up to 8TB capacity for each HDD

Hikvision NVR DS-96256NI-I16 256 Channels Up to 12MP

DISK ARRAY
Array type: RAID0, RAID1, RAID5, RAID6, RAID10
A number of arrays: 8
EXTERNAL INTERFACE
Optic fiber interface: 4 1000 Mbps optional optic fiber interfaces
Network Interface: 4 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interfaces
Serial Interface: RS-232, RS-485, Keyboard
USB Interface: Front panel: 2 × USB 2.0
Rear panel: 2 × USB 3.0
Alarm In: 16-ch
Alarm Out: 4-ch



GENERAL
Power Supply: 100-240 VAC, 550W
Consumption(without hard disk and POE): ≤ 140W
Working Temperature: 0 oC ~ +50 oC (32oF ~ 122oF)
Working Humidity: 10 % ~ 90 %
Chassis: 3U chassis
Dimensions: 442 × 494 146 mm (17.4 × 19.4 5.7 inch)
Weight(without HDD): ≤16kg (35.3lb)
