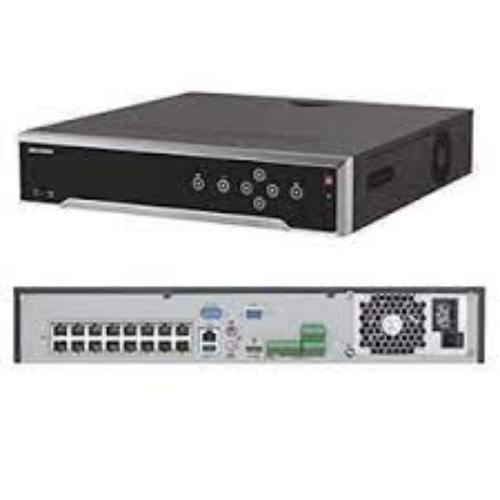

Hikvision DS-7732NI-K4 32 Channels Embedded 4K NVR
Hikvision DS-7732NI-K4/16P specifications
| WEIGHT | 5000.0000 |
|---|---|
| NUMBER OF CHANNELS | 32 |
| SYNCHRONOUS PLAYBACK | 16-ch |
| NUMBER OF POE PORTS | 16 |
| INCOMING BANDWIDTH | 256 Mbps |
| OUTGOING BANDWIDTH | 160 Mbps |
| NUMBER OF BAYS | 4 |
| AUDIO INPUT | 1-ch |
| AUDIO OUTPUT | 1-ch |
| ALARM I/O | 16/4 |
| FRONT USB | 2 x USB 2.0 |
| REAR USB | 1 x USB 3.0 |
| RS232 | Yes |
| RS485 | Yes |
| ANR (AUTOMATIC NETWORK RECOVERY) | Yes |
| HDD CAPACITY SUPPLIED | 0GB (Hard Disk Drives sold separately to demand) |
| MAXIMUM MEMORY CAPACITY | 48TB |
| CHASSIS | 1.5U |
| DIMENSIONS | 445 x 390 x 70mm |
Professional and Reliable
- Dual-OS design to ensure high reliability of system running
- ANR technology to enhance the storage reliability when the network is disconnected
HD Input
- H.265/ H.265+/H.264/ H.264+/MPEG4 video formats
- Connectable to the third-party network cameras
- Up to 32 IP cameras can be connected
- Recording at up to 8 MP resolution
- Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
HD Output
- HDMI and VGA independent outputs provided
- HDMI Video output at up to 4K (3840 × 2160) resolution
HD Storage
- Up to 4 SATA interfaces connectable for recording and backup
- Storage space is effectively saved by 50% to 70% with the use of H.264+ decoding format
HD Transmission
- 1 self-adaptive 10 M/100 M/1000 Mbps network interface
- 16 independent PoE network interfaces are provided
Various Applications
- Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.
- Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized
- VCA detection alarm is supported
- Instant playback for assigned channel during multi-channel display mode
- Smart search for the selected area in the video; and smart playback to improve the playback efficiency
- Supports HDD quota and group modes; different capacities can be assigned to different channels
- Hik-Connect for easy network management
Specifications
• Third-party network cameras supported
• Up to 8 Megapixels resolution recording
• Support 1-ch HDMI, 1-ch VGA, and HMDI at up to 4K(3840×2160)
resolution
• 16/32-ch network cameras can be connected with
160M/256M incoming bandwidth
• Up to 4 SATA interfaces
• Support dual-os to ensure high reliability of system
running
•Support various VCA detection alarms and VCA search
•Support H.265/H.264/MPEG4 video formats
