Description

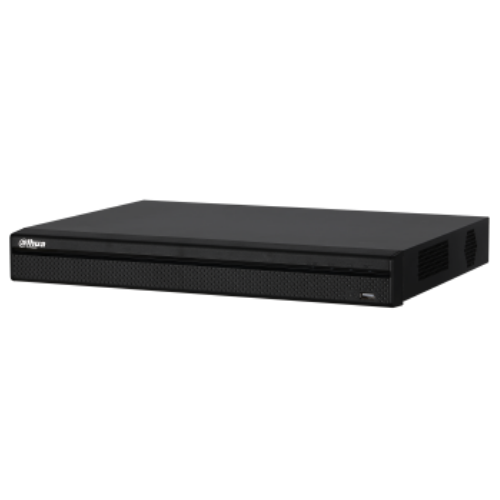

Dahua 1080P XVR5232AN-S2 32 Channel DVR

Smart H.254+
Smart Codec, H.265+ can reduce up to 90% bit rate and storage requirements compared with H.264 without having to invest in new cameras

High Definition Camera Input

The XVR supports up to 5MP HDCVI camera and 6MP IP camera input.

Long Distance Transmission
The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation.
The HDCVI system supports long distance transmission over coaxial cable and UTP, max. 700m for 4K/4MP, 800m for 1080P and 1200m for 720P.

HDCVI/AHD/TVI/CVBS/IP Auto-detect
The XVR can auto recognize the signal of front-camera without any setng. It makes operaton more friendly and convenient.

Coaxial Audio/Upgrade/Alarm
The integrated design can reduce wiring troubles which makes it much more cost-effectve and convenient for installaton

Intelligent Video System (IVS)
With built-in intelligent video analytcs, the XVR has the ability to detect and analyze moving objects for improved video surveillance.

Face Detecton
It is a type technology being used in a variety of applicatons that search or identfy individuals which show front cameras.

Smart Search
This functon helps you get more moton detect video during a short tme through drawing a region when playback.

System

Main Processor Embedded Processor
Operating System Embedded LINUX
Video and Audio
Analog Camera Input 32 Channel, BNC
HDCVI Camera 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera 4MP, 1080P@25/30, 720P@25/30fps
TVI Camera 4MP1080P@25/30, 720P@25/30fps
CVBS Camera PAL/NTSC
IP Camera Input 32 Channel, each channel up to 5MP
Audio In/Out 1/1, RCA
Two-way Talk Reuse audio in/out, RCA
Recording
Compression H.264+/H.264
Resolution 4M-N, 1080P, 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Record Rate Main stream: 4M-N/1080P(1~15fps); 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)Sub steram: D1/CIF/QCIF(1~15fps)
Bit Rate 1Kbps ~ 6144Kbps Per Channel
Record Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Display
Interface 1 HDMI, 1 VGA, 1 TV
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display 1/4/8/9/16/25/36
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface 1 RJ-45 Port (1000M)
Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.42, CGI Conformant
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm input N/A
Relay Output N/A
Playback and Backup
Playback 1/4/9/16
Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Storage
Internal HDD 2 SATA Port, up to 8TB capacity
eSATA N/A
Auxiliary Interface
USB 1 USB 2.0 , 1 USB 3.0
RS232 N/A
RS485 1 Port, for PTZ Control
Electrical
Power Supply DC12V/5A
Power Consumption <20W (Without HDD)
Construction
Dimensions 1U, 375mm×287mm×53mm (14.8″ x 11.3″ x 2.1″)
Net Weight 2.35kg (5.2 lb) (without HDD)
Gross Weight 3.2kg (7.05lb)
Installation Desktop installation
Environmental
Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
Third-party Support
Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Certifications
Certifications FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
UL: UL 60950-1
