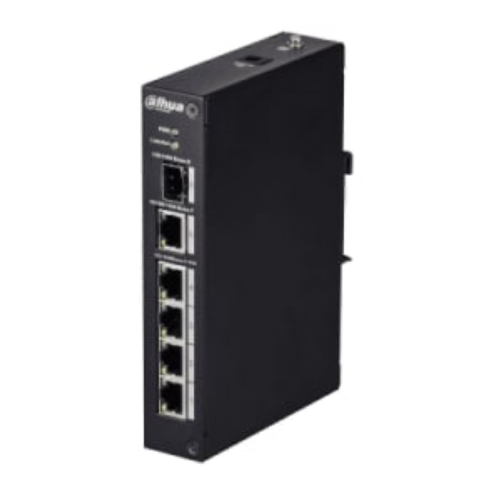

Dahua PFS3106-4P-60 6-Port PoE Switch

The Dahua PFS3106-4P-60 is a compact 6-port unmanaged PoE switch designed for small to medium-sized IP surveillance networks. It features 4 PoE ports for powering IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices, along with 2 uplink ports for network connectivity.

With a 60W total PoE power budget, long-distance transmission support, and plug-and-play operation, it is an excellent choice for CCTV installations, offices, retail stores, and home security systems.

---

Key Features & Benefits

• 4 × PoE Ports (IEEE 802.3af/at)
  • Powers IP cameras and other PoE devices through a single Ethernet cable, simplifying installation.
• 60W Total PoE Power Budget
  • Supports multiple PoE devices simultaneously with reliable power distribution.
• Long-Distance PoE Transmission
  • Supports extended transmission distances (up to 250m in Extend Mode on supported devices), making it ideal for surveillance installations.
• Plug-and-Play Operation
  • Requires no configuration, allowing for quick and easy deployment.
• Built-in Surge and Overload Protection
  • Protects connected equipment from electrical surges and power fluctuations.

---

Technical Specifications

General

• Brand: Dahua
• Model: PFS3106-4P-60
• Product Type: Unmanaged PoE Switch
• Layer: Layer 2

---

Ports

• 4 × 10/100 Mbps PoE RJ45 Ports
• 2 × 10/100 Mbps Uplink RJ45 Ports
• Total Ports: 6

---

PoE Features

• PoE Standard: IEEE 802.3af / IEEE 802.3at
• PoE Ports: Ports 1–4
• Maximum PoE Output per Port: Up to 30W
• Total PoE Budget: 60W

---

Switching Performance

• Switching Capacity: 1.2 Gbps
• Packet Forwarding Rate: 0.89 Mpps
• MAC Address Table: 2K entries
• Packet Buffer Memory: 768 Kbits

---

Network Features

• Store-and-Forward Switching
• Auto MDI/MDIX
• Flow Control (IEEE 802.3x)
• Extend Mode (up to 250m for supported PoE devices)
• VLAN Mode (isolates PoE ports to improve network security and reduce broadcast traffic)

---

Power

• Power Input: 48V–57V DC
• Power Consumption: Maximum 60W (PoE load dependent)

---

Environmental

• Operating Temperature: -10°C to +55°C
• Storage Temperature: -40°C to +70°C
• Humidity: 10%–90% RH (non-condensing)

---

Physical Specifications

• Housing Material: Metal
• Installation: Desktop or Wall Mount
• Color: Black
• Cooling: Fanless design for silent operation

---

Pros

• Supports four PoE-powered devices
• Easy plug-and-play installation
• Reliable 60W PoE power budget
• Long-range PoE transmission mode
• Compact and durable metal housing
• Silent fanless operation
• Ideal for CCTV and small business networks

---

Cons

• Fast Ethernet (10/100 Mbps) ports only
• No Gigabit Ethernet support
• Unmanaged switch with limited advanced networking features
• Suitable for small installations only

---

Ideal For

• IP CCTV surveillance systems
• Small offices
• Retail stores
• Schools
• Warehouses
• Wireless access point deployment
• VoIP phone installations

---
