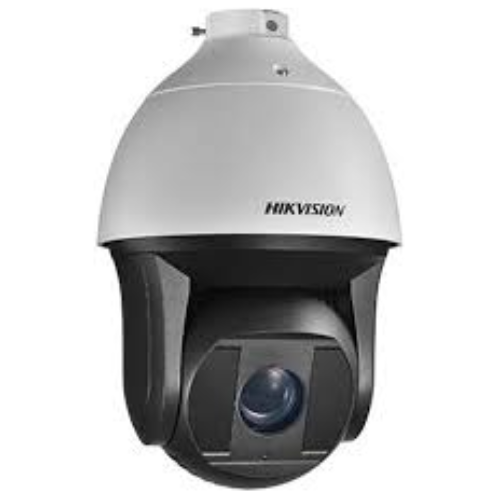

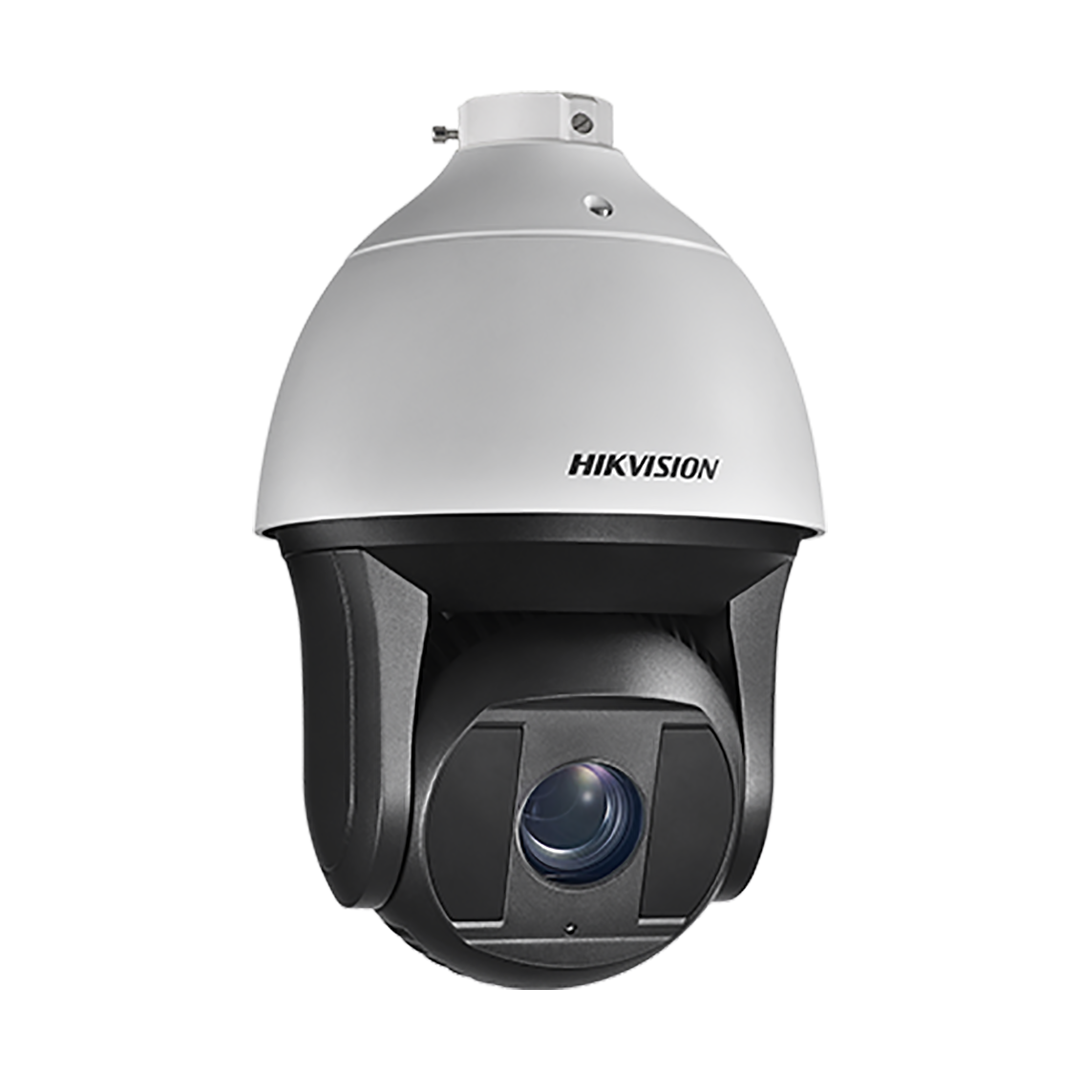

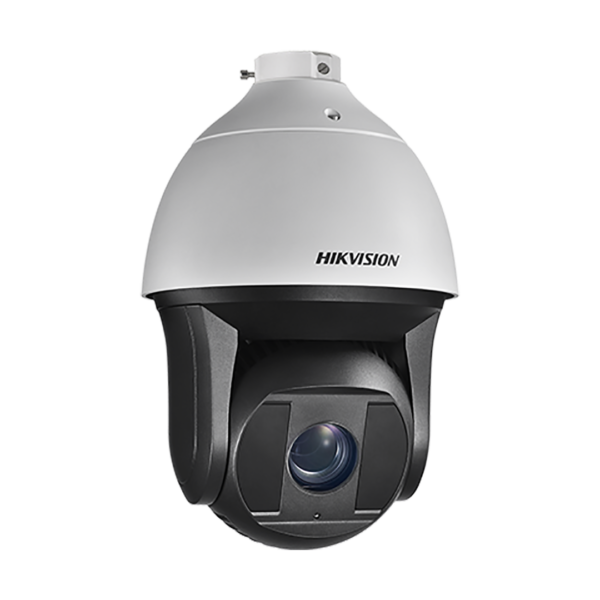

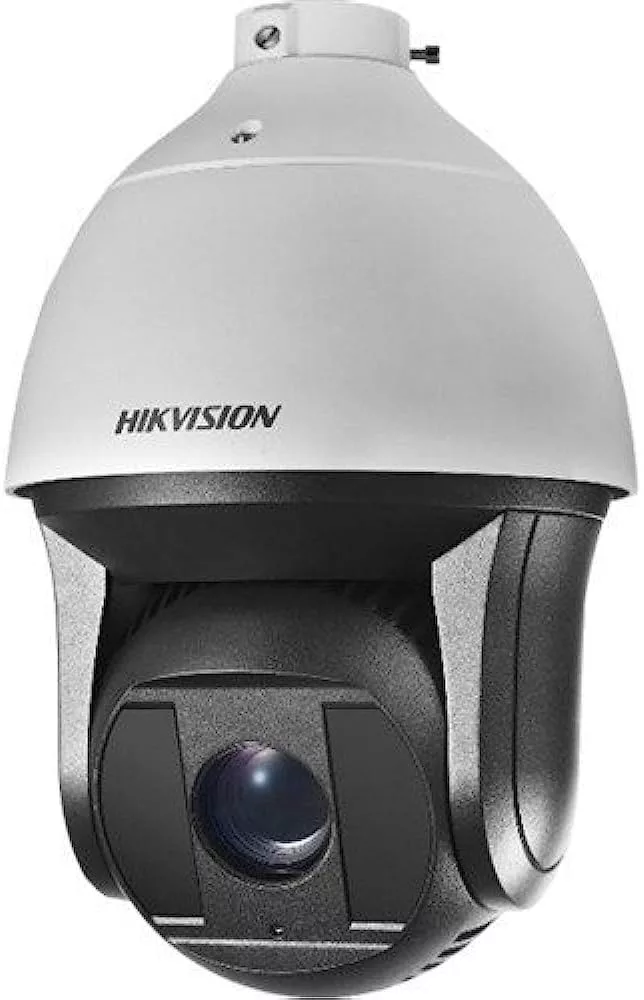

The HikVison 2MP Ultra-Low Light Smart PTZ Camera DS-2DF8236I-AEL
2MP Ultra-Low Light Smart PTZ Camera DS-2DF8236I-AEL Quick Specs
- 1/1.9″ HD CMOS Sensor
- Optical Defog
- 2 MP (1920 x 1080) Full HD
- 36x Optical Zoom
- Ultra-Low Illumination
- 120 dB True WDR
- Smart Tracking
- Smart Detection
- EIS (Electronic Image Stabilization)
- 200 Meters (650 ft) IR Range
- Hi-PoE/24 VAC Power
| Image Sensor: | 1/1.9″ HD CMOS sensor | |
| Effective Pixels: | 1920(H)x1080(V) | |
| Minimum Illumination: | F1.5, 50IRE, AGC On: Color: 0.002 lux, B/W : 0.0002 lux, 0 lux with IR | |
| Signal System: | PAL/NTSC | |
| White Balance: | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp | |
| AGC: | Auto/Manual | |
| BLC: | ON/OFF | |
| HLC: | Support | |
| Smart defog: | Support | |
| WDR: | 120dB | |
| Shutter Time: | 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s | |
| Day& Night: | ICR | |
| Digital Zoom: | 16X | |
| Privacy Masking: | 24 privacy masks programmable; optional multiple colors and mosaics | |
| Auto Focus: | Auto / Semi-automatic / Manual |
2MP Ultra-Low Light Smart PTZ Camera
| LENS | ||
|---|---|---|
| Focal Length: | 5.7-205.2, 36x | |
| Zoom Speed: | Approx.7.4s(Optical Wide-Tele) | |
| The Angle of View: | 58.7-2.0 degrees (Wide-Tele) | |
| Minimum Working Distance: | 10-1500mm(Wide-Tele) | |
| Aperture Range: | F1.5~F4.5 | |
| PAN & TILT | ||
|---|---|---|
| Pan Range: | 360°endless | |
| Pan Speed: | Pan Manual Speed: 0.1°~160°/s, Pan Preset Speed: 240°/s | |
| Tilt Range: | -20°~90°(Auto Flip) | |
| Tilt Speed: | Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 200°/s | |
| Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples | |
| Number of Preset: | 300 | |
| Patrol: | 8 patrols, up to 32 presets per patrol | |
| Pattern: | 4 patterns, with the recording time not less than 10 minutes per pattern | |
| Power-off Memory: | Support | |
| Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan | |
| PTZ Position Display: | ON/OFF | |
| Freeze Frame: | Support | |
| Smart-tracking: | Manual/ Panorama/ Intrusion trigger/ Line crossing trigger/ Region entrance trigger/ Region exiting trigger Smart tracking when patrolling between multiple scenarios |
|
| Wiper: | Optional | |
2MP Ultra-Low Light Smart PTZ Camera
| INFRARED | ||
|---|---|---|
| IR irradiation distance: | 200m | |
| IR irradiation angle: | Adjustable by zoom | |
| ALARM | ||
|---|---|---|
| Alarm Input: | 7 Inputs | |
| Alarm Output: | 2-channel relay output, with configurable alarm actions | |
| Alarm Actions: | Preset, patrol, pattern, SD/SDHC card recording, relay output, notification on client | |
2MP Ultra-Low Light Smart PTZ Camera
| INPUT & OUTPUT | ||
|---|---|---|
| Monitor Output: | 1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC | |
| Audio Input: | 1 Mic in/Line in interface Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10% |
|
| Audio Output: | 1 Audio output interface Line level, impedance: 600Ω |
|
2MP Ultra-Low Light Smart PTZ Camera
| NETWORK | ||
|---|---|---|
| Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector | |
| Max.Image Resolution: | 1920×1080 | |
| Main Stream: | 50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720) 60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720) |
|
| Sub Stream: | 50Hz: 25fps(704×576), 25fps (352×288), 25fps (176×144) 60Hz: 30fps(704×480), 30fps (352×240), 30fps (176×120) |
|
| Video Compression: | H.264/MJPEG/MPEG4, H.264 encoding with Baseline/Main/High profile | |
| ROI encoding: | Support 24 areas with adjustable levels | |
| Audio Compression: | G.711ulaw/G.711alaw/G.726/MP2L2/G.722 | |
| Protocols: | IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE | |
| No. of Simultaneous Users: | Up to 20 users | |
| Three-Stream: | Support | |
| User/Host Level: | Up to 32 users,3 Levels: Administrator, Operator, and User | |
| Security Measures: | User authentication (ID and PW), Host authentication (MAC address) IP address filtering |
|
2MP Ultra-Low Light Smart PTZ Camera
| CLIENT GUI | ||
|---|---|---|
| Camera Control: | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode | |
| Date & Time Display: | Time: Week: Date, 6 formats on the Client | |
| Client: | Support iVMS-4200 | |
| Web Browser: | IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 + | |
| GENERAL | ||
|---|---|---|
| RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive | |
| Menu Language: | English | |
| Power Supply: | 24 VAC & Hi-PoE | |
| Power Consumption: | Max.60W | |
| Working Temperature/Humidity: | -40°C ~ 65°C (-40°F ~ 149°F) | |
| Protection Level: | IP66, IK10, TVS 6,000V lightning protection, surge protection, and voltage transient protection | |
| Mounting: | Various mounting modes optional | |
| Dimensions: | Φ266.6(mm)×365.2(mm) | |
| Weight (approx.): | 8kg (approx.) | |
| Mount Option: | Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ |
|
