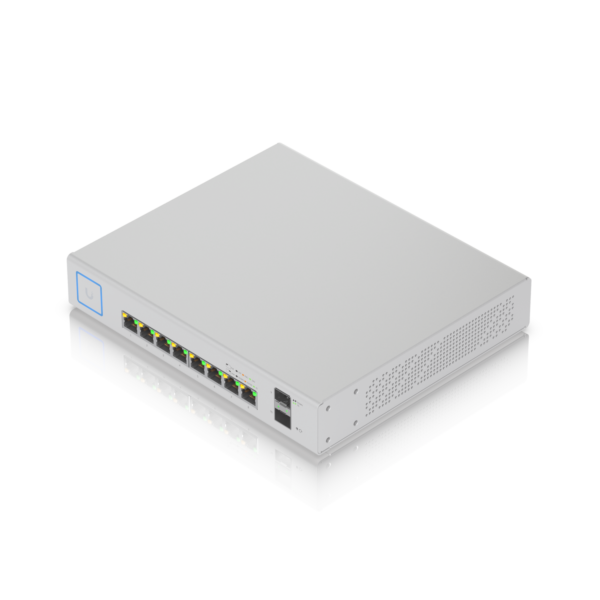

Ubiquiti Networks UniFi US-8-150W network switch

Ubiquiti Networks UniFi US-8-150W: Powerful Managed PoE+ Network Switch

The Ubiquiti Networks UniFi US-8-150W is a versatile and robust managed network switch designed for high-performance networking environments, and it is priced at Ksh. 43,000 in Nairobi, Kenya here at Novelty Tech Solutions Ltd.

This 8-port Gigabit switch offers advanced features and Power over Ethernet (PoE+) capabilities, making it an ideal choice for both small businesses and enterprise deployments.

Unmatched Performance

The US-8-150W delivers exceptional network performance:

• 8 Gigabit Ethernet ports for high-speed connections
• Non-blocking throughput of up to 16 Gbps
• 2.96 Mpps forwarding rate
• Jumbo frame support (9216 bytes)

These features ensure smooth data transfer and minimal latency, even in demanding network environments.

PoE+ Capabilities

Power over Ethernet functionality simplifies device installation:

1. 4 auto-sensing IEEE 802.3af/at PoE+ ports
2. Total PoE power budget of 150W
3. 46W max power per PoE port

This allows you to power devices such as IP cameras, VoIP phones, and wireless access points directly through the Ethernet cable, reducing cable clutter and installation complexity.

Intelligent Management

The UniFi Controller software provides centralized management:

• Intuitive web-based interface
• Real-time traffic monitoring and analytics
• VLAN configuration and port management
• Firmware updates and device provisioning

These features give network administrators granular control over their network infrastructure.

Reliable Build Quality

Ubiquiti ensures durability and longevity:

• Fanless design for silent operation
• Compact metal housing (1U rack-mountable)
• Operating temperature range: -5 to 40° C (23 to 104° F)

The robust construction makes the US-8-150W suitable for various deployment scenarios, from office environments to industrial settings.

Ubiquiti Networks UniFi US-8-150W: Technical Specifications and Benefits

Switching Capacity

• Total non-blocking throughput: 16 Gbps
• Switching capacity: 16 Gbps
• Forwarding rate: 2.96 Mpps
• Benefit: Ensures smooth data flow even during peak network usage

Port Configuration

• 8 x 10/100/1000 Mbps RJ45 ports
• 4 x PoE+ Auto-Sensing IEEE 802.3af/at ports
• Benefit: Flexibility in connecting both PoE and non-PoE devices

Power over Ethernet

• PoE+ IEEE 802.3at/af
• PoE Voltage Range: 50-57V
• Max PoE Wattage per Port: 46W
• Benefit: Simplifies installation and reduces cabling requirements for powered devices

Management Features

• UniFi Controller software v5.6.30 or higher
• VLAN support
• Port mirroring
• Benefit: Comprehensive network control and monitoring capabilities

Layer 2 Features

• 802.1Q VLAN
• 802.1X authentication
• IGMP snooping
• Benefit: Enhanced network security and traffic management

Physical Specifications

• Dimensions: 148 x 99 x 30 mm
• Weight: 559 g
• Rack-mountable: Yes (1U)
• Benefit: Compact design suitable for various installation environments

Power Input

• AC/DC Power Adapter: 150W
• Max Power Consumption: 150W
• Benefit: High power output for PoE devices while maintaining energy efficiency
