Ubiquiti airMAX 5GHz 30dBi RocketDish Antenna

airMAX 5 GHz, 30 dBi RocketDish LW (RD-5G30-LW): High-Performance Wireless Antenna

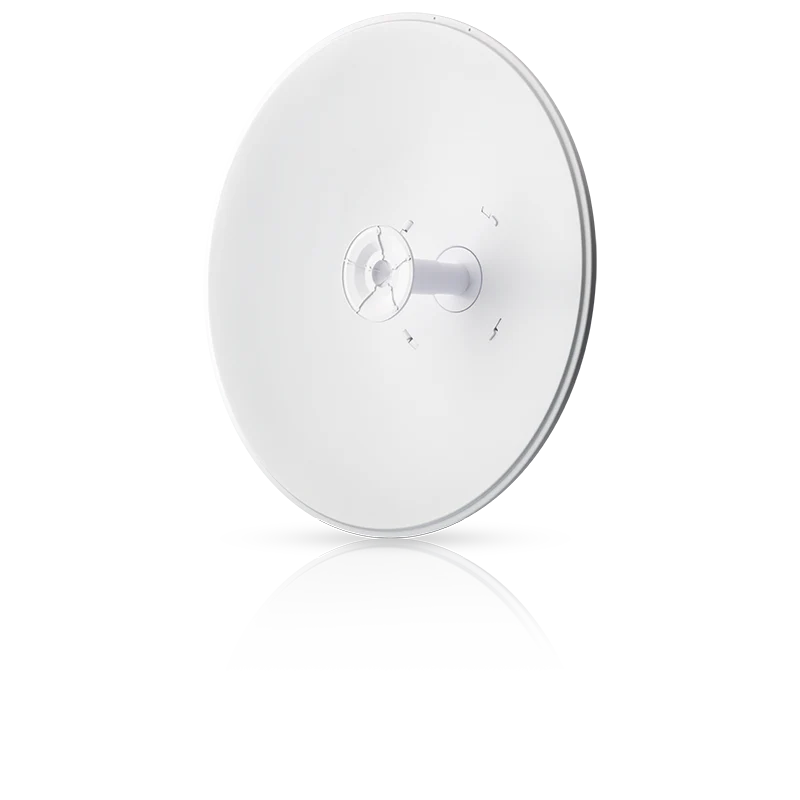

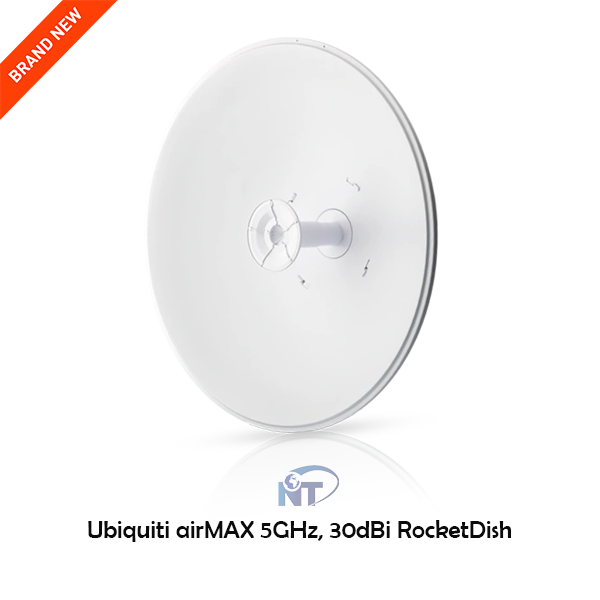

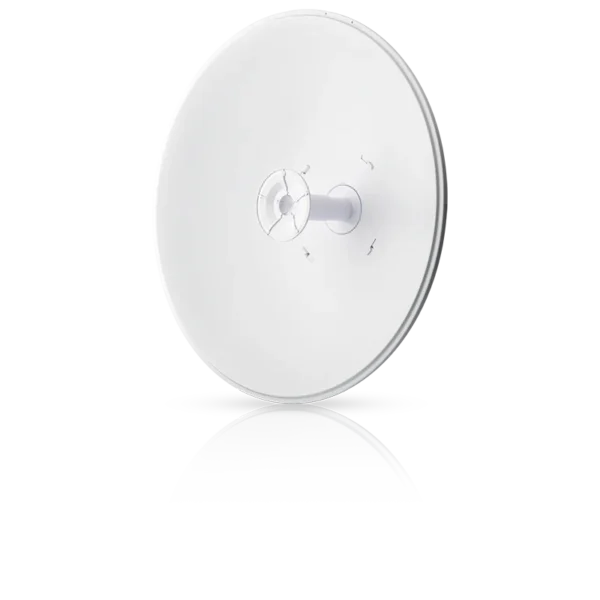

Ubiquiti airMAX 5GHz 30dBi RocketDish Antenna (RD-5G30-LW) is a high-gain directional antenna designed for long-range, high-performance wireless connectivity. This lightweight dish antenna is part of Ubiquiti’s airMAX line, offering exceptional performance for point-to-point and point-to-multipoint wireless applications.

Superior Range and Performance

The RD-5G30-LW delivers outstanding wireless capabilities:

• 30 dBi gain for extended range
• 5 GHz frequency band operation
• Precision-engineered reflector for optimal signal focus
• Compatible with Ubiquiti’s Rocket M5 radio (sold separately)

These features combine to provide reliable, high-speed wireless links over long distances.

Innovative Lightweight Design

Ubiquiti’s engineering prowess shines in the antenna’s construction:

1. Lightweight materials reduce overall weight by 25%
2. Improved wind loading characteristics
3. Easier installation and reduced shipping costs
4. Durable construction for outdoor use

The lightweight design doesn’t compromise on performance or durability, making it ideal for various deployment scenarios.

Versatile Mounting Options

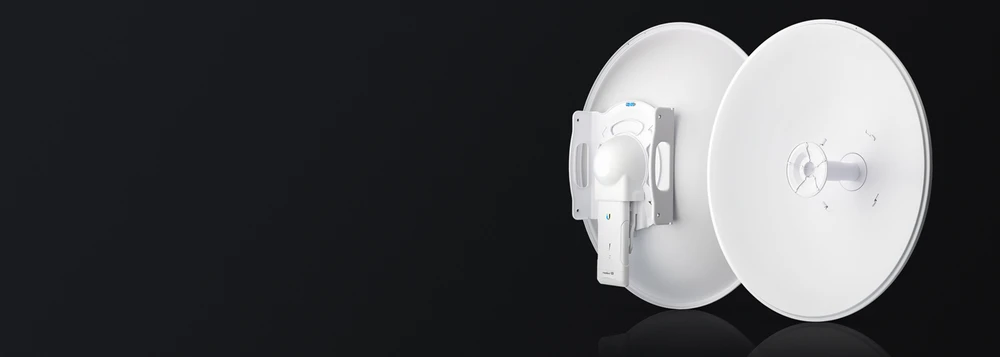

The RD-5G30-LW offers flexible installation:

• Pole-mounting hardware included
• Rocket mount built into the feed horn
• Adjustable elevation and azimuth for precise aiming

This versatility ensures optimal placement and alignment for the best possible signal strength.

airMAX Technology Integration

When paired with a compatible Rocket radio, the antenna leverages Ubiquiti’s airMAX technology:

• TDMA protocol for improved latency and throughput
• Scalable for point-to-multipoint setups
• Resistant to noise in high-congestion areas

airMAX technology enhances the overall performance and reliability of your wireless network.

Ubiquiti airMAX 5GHz 30dBi RocketDish Antenna (RD-5G30-LW): Technical Specifications and Benefits

Antenna Specifications

• Frequency Range: 5.1 – 5.8 GHz
• Gain: 30 dBi
• Polarization: Dual-Linear
• Cross-pol Isolation: 35 dB Min
• Benefit: Exceptional signal strength and directionality for long-range links

Mechanical Specifications

• Diameter: 648 mm (25.51″)
• Weight: 5.9 kg (13.01 lb)
• Wind Survivability: 125 mph (200 km/h)
• Wind Loading: 220 N @ 125 mph (200 km/h)
• Benefit: Lightweight yet durable design for easier installation and longevity

Mounting

• Rocket Mount: Built-in
• Pole Mount: Included
• Elevation Adjustment: ± 15°
• Azimuth Adjustment: ± 15°
• Benefit: Flexible mounting options for precise antenna alignment

Environmental Specifications

• Operating Temperature: -40 to 70° C (-40 to 158° F)
• Operating Humidity: 5 to 95% Noncondensing
• Benefit: Suitable for deployment in various climatic conditions

Radiation Patterns

• Azimuth Plane: 3 dB Beamwidth (6°)
• Elevation Plane: 3 dB Beamwidth (6°)
• Benefit: Focused signal pattern for improved performance and reduced interference

Regulatory Compliance

• RoHS Compliance: Yes
• WEEE Compliance: Yes
• Benefit: Meets environmental and safety standards
