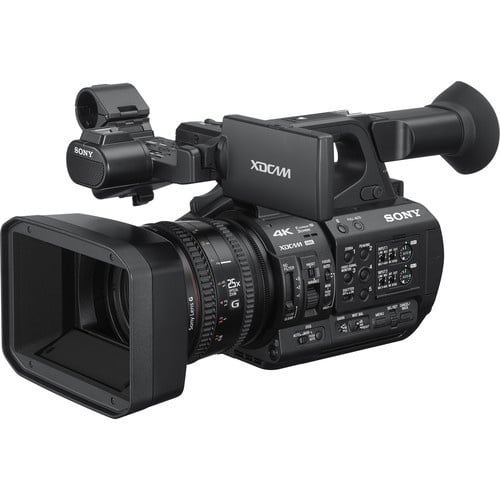

Sony PXW-Z190 4K 3-CMOS 1/3″ Sensor XDCAM Camcorder

Sony PXW-Z190 4K 3-CMOS 1/3″ Sensor XDCAM Camcorder

Sony’s PXW-Z190 4K 3-CMOS 1/3″ Sensor XDCAM Camcorder continues the fine tradition of the XDCAM series of cameras. It captures 4K at up to 60p, relying on three 1/3″ Exmor R sensors that provide improved low-light capability compared to standard sensors. The camera integrates a 25x optical Sony G zoom lens and an electronic variable ND filter. The camera supports a variety of codecs out of the box, with an optional MPEG HD license enabling you to shoot HD video.

The camera supports HLG (Hybrid Log Gamma), allowing you to shoot and deliver footage compatible with both HDR (high dynamic range) and SDR (standard dynamic range) without needing laborious post-production work. Dual SD card slots permit a variety of recording options, including simultaneous HD and 4K recording. The camera features built-in 2.4 and 5 GHz Wi-Fi.

4K 50p/60p with a stunning 25x zoom lens

This superb all-rounder is the de facto choice for a wide range of 4K and HD single camera shoots with an all-new 1/3-type 3CMOS sensor. A powerful 25x zoom lens with three independent lens rings delivers pin-sharp 4K imaging for almost any professional shooting scenario. Advanced Face Detection AF and Sony’s unique Electronic Variable ND filter making shooting great content stress-free.

Advanced workflow features

Instant HDR means you can deliver stunning imagery quickly without need for additional colour grading. Dual MI Shoe allows simultaneous use of wireless audio and video lighting, while advanced network performance support is easily enabled when required*.

A wealth of formats and features for professionals

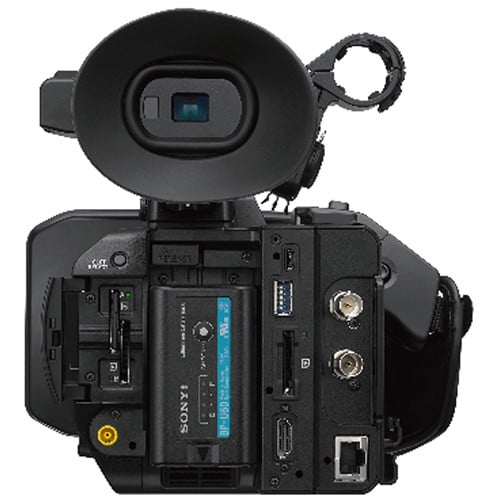

Sony’s familiar control layout and robust build quality make this a camera you can rely upon. It supports a wide range of formats including XAVC-Long, DVCAM, MPEG HD422/ MPEG HD* and Proxy 1080i. Dual SD slots, 3G-SDI output and Remote Terminal ensure it can support all workflow scenarios.

4K 1/3-type 3CMOS Sensor

The PXW-Z190 is the world’s first professional camcorder with a 4K (QFHD) 1/3-inch type sensor. Red, blue, and green light are independently captured by separate image sensors within the Exmor RTM system in 3840 x 2160 resolution at up to 60fps. Even if you’re delivering in HD, 4:2:2 10bit recordings will capture detail and image texture that HD sensors simply cannot see.

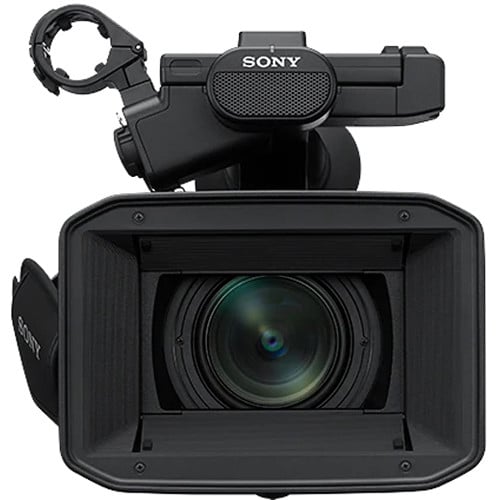

25x professional zoom lens with three independent rings and large focal length

The PXW-Z190 is equipped with a 25x professional zoom lens able to zoom from 28.8mm to 720mm (35mm equivalent). The 1/3-inch type lens has three independent control rings, which allows manual control of focus, zoom and iris, making for better and faster adjustment.

The image can be enlarged in HD mode up to 50x zoom equivalent while maintaining Full HD resolution thanks to digital extender.

Advanced Face Detection AF

The PXW-Z190 features newly developed Face detection AF. You can choose between Face Priority AF and Face Only AF. Simply keep the person in frame and however you move to obtain a better angle, you can be confident the PXW-Z190 will keep your subject in pin-sharp focus.

HDR / SDR dual production support*

When shooting HDR content, the Z190’s EVF is easily switched between HDR and SDR emulation modes. In addition, if you adjust the brightness of the image when in SDR emulation, the SDR gain dB is recorded into metadata so it can be used in post-production for the SDR content. Together these changes make it easier to shoot in HDR while also achieving a quick turnaround for SDR content.

Built-in electronic Variable ND Filters

Sony’s ground-breaking integration of electronic variable ND Filters into the body of a camcorder enables fast, agile shooting. Moving from shadowy interiors to bright sun-lit exteriors is no problem with the PXW-Z190. Unlike conventional optical ND filters, the electronic ND filter on the PXW-Z190 can be controlled from 1/4ND to 1/128ND linearly while ND Filters can be set to fully auto. You can even manually adjust Depth of Field using the iris lens ring, while relying on the PXW-Z190 to maintain constant exposure without changing gain nor shutter speed.

Instant HDR workflow

Shoot, edit and view HDR content in HLG without the need for additional colour grading. Premium content services are switching to HDR and the PXW-Z190 is ready with Hybrid Log-Gamma (HLG) recording, for easy file-based workflows, whilst achieving the image quality of HDR. This simple workflow enables the shooting, editing and viewing of HDR content in HLG, without devoting a lot of time to post-production work and additional colour grading.

Stream directly to major online platforms*

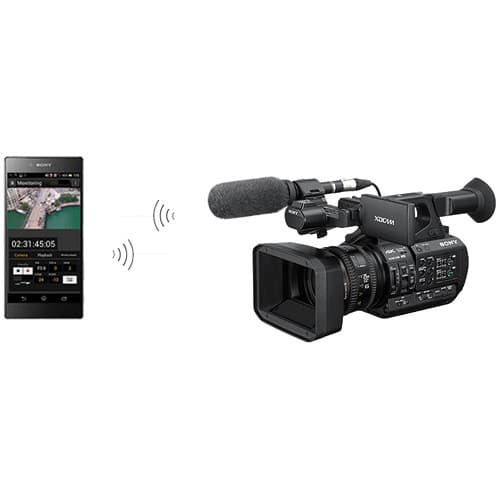

Live streaming instantly connects you with your audience, wherever you are. From breaking news and live events to interviews and seminars – capture high-quality images and share them in real time on major online video platforms such as YouTube Live, Facebook Live, Mudu.tv and more. Set up your own streaming channel with your smartphone or tablet, connect via Wi-Fi – and you’re ready to go. You can even import streaming account details from your PC or Mac via SD card using our StreamingSettingTransfer app.

XAVC Long GOP recording at QFHD and Full-HD

XAVC technology is based on the H.264 standard, which provides an exceptionally robust and efficient compression technology. XAVC Long GOP applies compression across multiple frames – reducing file sizes, which can make for fast ingest and editing as well as providing budget savings on recording media. In HD shooting, the XAVC codec adopts 10-bit sampling for high definition recording with rich tonal expression.

Broadcast-standard MPEG HD422 and MPEG HD*

High-quality MPEG HD422 50 Mbps is fully compliant with the latest EBU recommendations for long-form broadcast production and is widely accepted in broadcasting stations and production houses. This recording capability makes PXW-Z190 ideal for a wide range of different applications, including newsgathering and documentary production.
