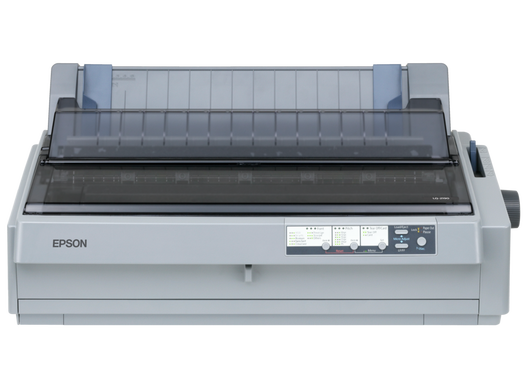

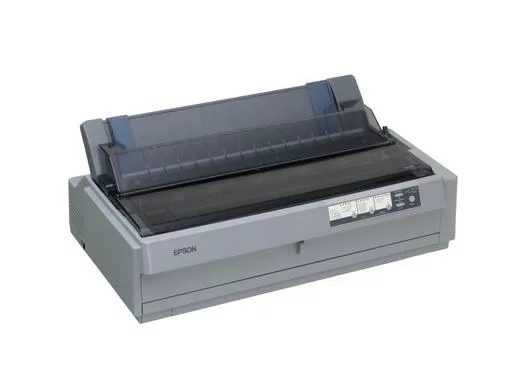

Epson LQ-2190 Dot Matrix Printer

Epson LQ-2190 Dot Matrix Printer: High-Performance Wide-Carriage Printing

The Epson LQ-2190 Dot Matrix Printer is a robust, wide-carriage printing solution designed for high-volume, mission-critical printing environments. This powerful printer combines reliability, speed, and versatility to meet the demanding needs of businesses that require consistent, high-quality output for wide-format documents and multi-part forms.

Unmatched Durability and Longevity

The LQ-2190 is built to withstand the rigors of continuous, heavy-duty use:

1. Robust construction for industrial-grade reliability
2. Impressive mean time between failures (MTBF) of 20,000 power-on hours
3. Print head life of 400 million strokes per wire
4. Ribbon life of 15 million characters

These specifications ensure minimal downtime and lower maintenance costs over the printer’s extended lifespan.

Superior Print Speed and Quality

• Speed: Up to 576 characters per second at 12 cpi
• Resolution: 24-pin impact dot matrix technology for crisp output

The LQ-2190 delivers fast, high-quality printing, making it ideal for time-sensitive applications where clarity is crucial.

Versatile Paper Handling

Offering flexible paper handling options to accommodate various business needs:

• Push tractor (front or rear)
• Pull tractor (bottom)
• Manual insertion (top and rear)
• Cut sheet feeder (optional)

This versatility allows for seamless printing on a wide range of media, including continuous forms, multi-part forms, labels, and envelopes.

Connectivity and Compatibility

• Parallel interface
• USB 2.0
• Optional Type B interface card slot

These options ensure compatibility with both legacy systems and modern IT infrastructures, making the LQ-2190 a versatile choice for diverse office environments.

Energy Efficiency

ENERGY STAR® qualified, demonstrating Epson’s commitment to environmental responsibility and helping businesses reduce their energy footprint without compromising on performance.

Epson LQ-2190 Dot Matrix Printer: Technical Specifications and Benefits

Understanding the technical aspects of the Epson LQ-2190 can help you appreciate its capabilities and how it can benefit your specific wide-format printing needs.

Print Technology

• Method: Serial impact dot matrix
• Number of pins: 24
• Number of columns: 136

Benefit: The 24-pin technology provides superior print quality compared to 9-pin printers, while the wide carriage allows for printing on larger documents and forms.

Print Speed

• High Speed Draft: 576 cps (12 cpi)
• Draft: 480 cps (10 cpi)
• Letter Quality: 120 cps (10 cpi)

Benefit: Multiple speed options allow users to balance between print quality and speed based on the specific task at hand, enhancing productivity for various printing needs.

Paper Handling

• Paper feed: Friction, Push tractor, Pull tractor
• Paper path: Manual insertion (rear in, top out), Push tractor (front/rear in, top out), Pull tractor (bottom in, top out)
• Paper thickness: 0.065mm to 0.49mm

Benefit: Versatile paper handling capabilities make the LQ-2190 suitable for a wide range of applications, from printing wide spreadsheets to multi-part invoices and shipping documents.

Ribbon Information

• Type: Fabric ribbon cartridge
• Life: 15 million characters

Benefit: Long-lasting ribbons reduce the frequency of replacements, lowering operational costs and minimizing interruptions in high-volume printing environments.

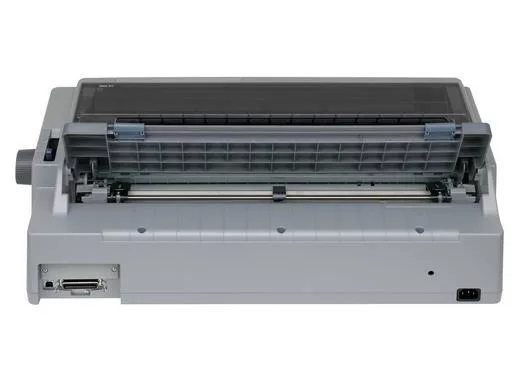

Interfaces

• Bidirectional parallel interface (IEEE-1284 nibble mode supported)
• USB 2.0 Type B
• Optional interface card slot

Benefit: Multiple interface options ensure compatibility with various systems and easy integration into existing office setups, including legacy systems that may still require parallel connections.

Reliability

• MTBF: 20,000 power-on hours
• Print head life: 400 million strokes/wire

Benefit: High reliability metrics translate to less downtime and lower maintenance costs over the printer’s lifetime, making it ideal for mission-critical printing operations.

Dimensions and Weight

• Dimensions: 639 x 402 x 256 mm (W x D x H)
• Weight: Approximately 13 kg
