Stress-free set-up

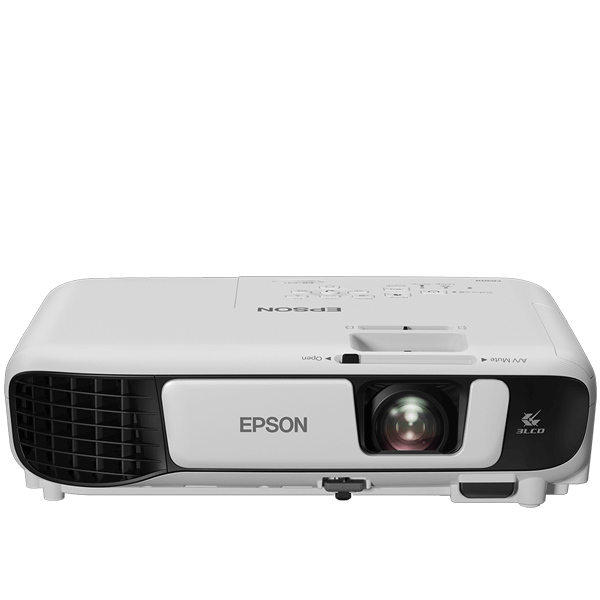

Here’s a projector that’s designed with portability and quick set up in mind. The carry case makes it easy to move from room to room, and you can quickly position the image with keystone correction and access content simply with the HDMI inputs. Thanks to the optional ELPAP11 adapter, it offers Wi-Fi connectivity, allowing you to share content from a smart device using the iProjection app.

• Projection System

  3LCD Technology, RGB liquid crystal shutter

  LCD Panel

  0.55 inch with C2 Fine

• Image

  Color Light Output

  3,800 Lumen- 2,500 Lumen (economy) In accordance with IDMS15.4

  White Light Output

  3,800 Lumen – 2,500 Lumen (economy) In accordance with ISO 21118:2012

  Resolution

  XGA, 1024 x 768, 4:3

  Aspect Ratio

  4:3

  Contrast Ratio

  16,000 : 1

  Light source

  Lamp

  Lamp

  UHE, 210 W, 6,000 h durability, 12,000 h durability (economy mode)

  Keystone Correction

  Auto vertical: ± 30 °, Manual horizontal ± 30 °

  2D Vertical Refresh Rate

  100 Hz – 120 Hz

  Colour Reproduction

  Upto 1.07 billion colours

• Optical

  Throw Ratio

  1.48 – 1.77:1

  Zoom

  Manual, Factor: 1.2

  Lens

  Optical

  Screen Size

  30 inches – 300 inches

  Projection Distance Wide/Tele

  1.8 m – 2.17 m ( 60 inch screen)

  Projection Lens F Number

  1.49 – 1.79

  Projection Lens Focal Length

  16.9 mm – 20.28 mm

  Projection Lens Focus

  Manual

  Offset

  8 : 1

• Connectivity

  USB Display Function

  2 in 1: Image / Mouse

  Interfaces

  USB 2.0 Type A, USB 2.0 Type B, VGA in, HDMI in, Composite in, Cinch audio in, Wireless LAN IEEE 802.11b/g/n (optional)

  Epson iProjection App

  Ad-Hoc / Infrastructure

• Advanced Features

  Security

  Kensington lock, Security cable hole, Wireless LAN unit lock, Password protection

  3D

  No

  2D Colour Modes

  Dynamic, Cinema, Presentation, sRGB, Blackboard

  Other features

  AV Mute Slide, Auto source search, Built-in speaker, Horizontal and vertical keystone correction, Long lamp life, Quick Corner, Split-Screen-Function

  Video Color Modes

  Blackboard, Cinema, Dynamic, Presentation, sRGB

• General

  Power consumption

  327 Watt, 225 Watt (economy), 0.3 Watt (standby), On mode power consumption as defined in JBMS-84 286 Watt

  Supply Voltage

  AC 100 V – 240 V, 50 Hz – 60 Hz

  Product dimensions

  302‎ x 237 x 82 mm (Width x Depth x Height)

  Product weight

  2.5 kg

  Noise Level

  Normal: 37 dB (A) – Economy: 28 dB (A)

  Supported Humidity

  Operation 20% – 80%, Storage 10% – 90% If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.

  Included Software

  iProjection

  Options

  Soft carry case, Wireless LAN unit

  Loudspeaker

  2 Watt

  What’s in the box

  Carrying Case, Computer cable, Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, User manual (CD), Warranty card

  Room Type / Application

  Home Office, Home Photo, Streaming, TV & Box sets

  Positioning

  Ceiling Mounted, Desktop

  Colour

  White
